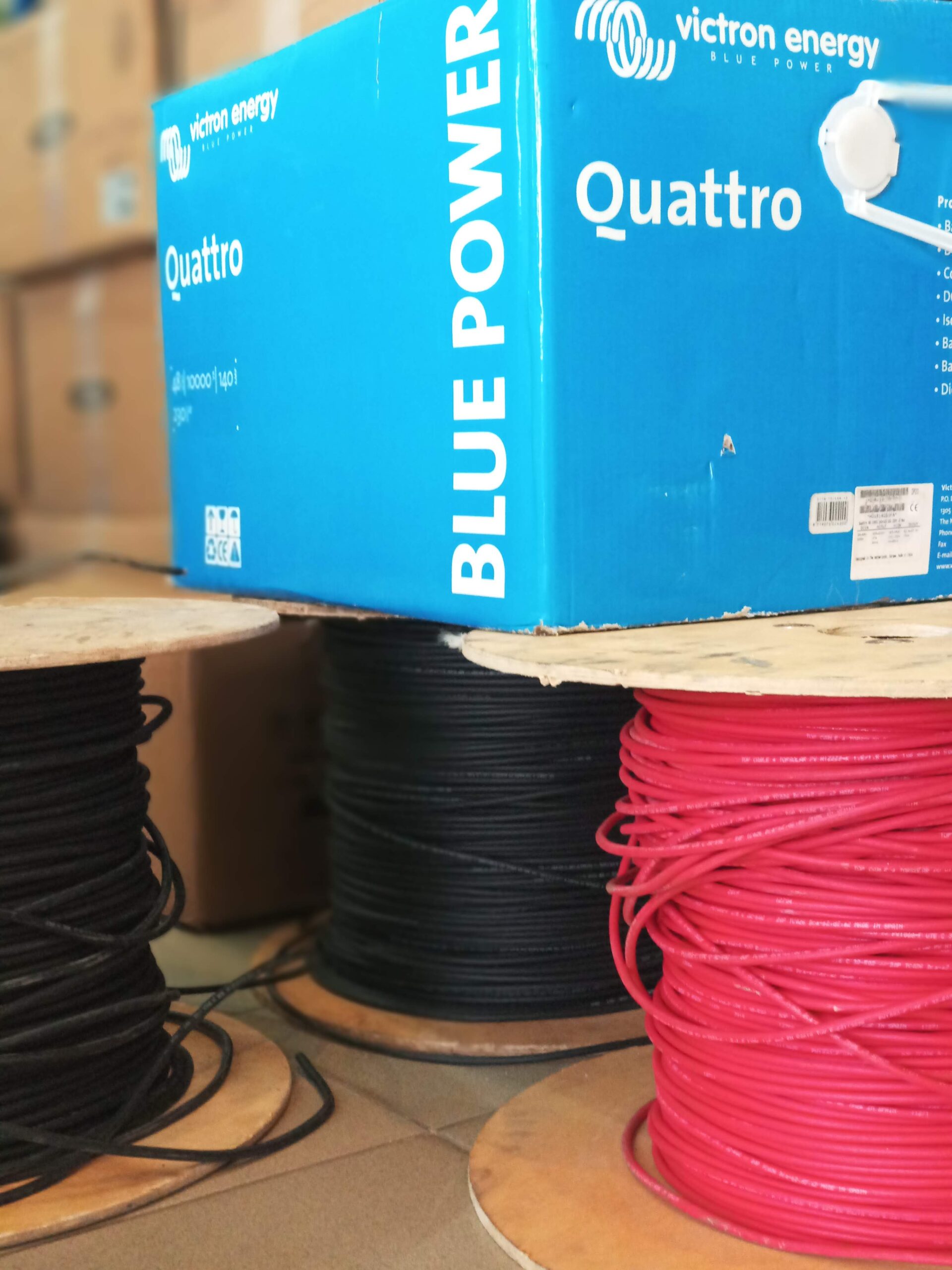

Solar cable size in Ghana is not a minor installation detail. It directly affects voltage drop, energy loss, heat, equipment performance and the long-term reliability of a solar power system.
Customers often spend most of their time comparing solar panels, inverters and batteries. Those products are visible, expensive and easy to discuss.
Cables are different.
Once installed inside trunking, conduit, ceilings, roofs or electrical enclosures, they largely disappear from view. That makes cabling one of the easiest places for an inexperienced or unethical installer to reduce cost without the customer noticing.
The system may still switch on.
That does not mean the cable selection is correct.
Why solar systems can carry very high current
Power, voltage and current are closely related.
A simple approximation is:
Current = Power ÷ Voltage
Consider a 5,000-watt inverter drawing power from a nominal 48-volt battery system. Before allowing for conversion losses and operating conditions, the current can already exceed 100 amperes.
At 24 volts, the current for the same power would be roughly twice as high.
This is why battery and inverter cables can be physically large. Low-voltage DC systems may carry far more current than customers expect.
High current makes conductor resistance and connection quality extremely important.
What happens when a cable is too small?
Every conductor has resistance.
When current passes through resistance, some energy is lost as heat. A smaller conductor normally has more resistance than a larger conductor of the same material and length.
If a cable is inadequately sized for the current and length involved, the system may experience:
- Excessive voltage drop
- Increased cable heating
- Reduced system efficiency
- Low-voltage alarms or shutdowns
- Poor inverter performance
- Inadequate battery charging
- Premature damage to insulation or connections
- Expensive corrective work
Victron Energy’s official Wiring Unlimited guidance explains that correct cable thickness depends on the current, cable length and acceptable voltage drop. It also recommends keeping voltage drop low and using appropriate connections, lugs and protection.
The engineering lesson is straightforward:
A cable is not suitable simply because electricity can pass through it.
It must carry the required current safely and efficiently under the actual installation conditions.
Cable length matters as much as cable thickness
A cable that is suitable for a short run may be inadequate for a much longer run.
Resistance increases with conductor length. Longer runs therefore create more voltage drop and power loss unless conductor size is adjusted appropriately.
This matters in solar installations because distances can vary considerably:
- Panels may be far from the inverter room.
- Batteries may be located away from the inverter.
- The inverter may be far from the main distribution board.
- Large commercial sites may have long cable routes.
- Ground-mounted arrays may be separated from buildings.
A professional installer should know the actual route length before finalising conductor size.
Guessing from a drawing or using the same cable on every project is not professional design.
DC solar cable, battery cable and AC cable are not interchangeable labels
A solar installation contains different electrical circuits with different requirements.
PV string cables
These carry direct current from solar modules and are often exposed to heat, sunlight and outdoor conditions. They must be suitable for the system voltage and environment, with compatible connectors and correct polarity.
Battery cables
These often carry very high DC current between batteries, busbars, fuses and inverter-chargers. Length, conductor size, termination quality and protection are critical.
AC cables
These connect the inverter to loads, the grid, generator circuits or distribution equipment. They must be selected for current, installation conditions, voltage drop and the relevant electrical requirements.
Using the phrase “assorted cables” in a quotation tells the customer very little.
A professional proposal should be supported by a real design, even if every calculation is not printed on the commercial quotation.
The cable is only as good as its connection
Correct cable size does not rescue poor workmanship.
Many electrical failures begin at connections rather than in the middle of an intact conductor.
Common weaknesses include:
- Loose terminals
- Incorrectly crimped cable lugs
- Poor-quality lugs or connectors
- Wrong tools
- Contaminated or corroded contact surfaces
- Excessive bending or mechanical strain
- Mixing incompatible connector types
- Ignoring manufacturer torque requirements
- Too many unnecessary joints
A poor connection creates additional resistance. Under high current, that resistance can generate significant heat at a small point.
This is why experienced installers use appropriate crimping tools, torque procedures, quality connectors and disciplined cable management.
Neatness matters, but connection integrity matters more.
Fuses and circuit breakers do not correct bad cable design
Protective devices are essential, but they are not permission to use an unsuitable conductor.
The cable and protective device must be coordinated.
The protection should respond appropriately to abnormal current while allowing the system to operate normally. Device voltage ratings, interrupting capacity, AC or DC suitability, equipment instructions and system architecture all matter.
Installing a breaker with an impressive current rating does not automatically make the circuit safe.
Protection must be selected as part of the design.
Ghana’s regulations make cable quality a serious issue
Ghana’s Energy Commission introduced the Electrical Wiring Cables and Electrical Wiring Accessories Regulations, 2023 (L.I. 2478) to enforce minimum standards and testing requirements for electrical wiring cables and accessories.
The Commission has stated that some products on the Ghanaian market did not meet minimum acceptable standards and could expose the public to fire and electrocution hazards.
The regulations apply to electrical wiring cable and accessory installers as well as manufacturers, importers and sellers.
For customers, the practical message is clear:
- Buy approved products from credible sources.
- Ask installers to identify the materials being used.
- Do not accept unknown cable merely because the quotation is cheaper.
- Use competent electrical professionals.
The Energy Commission also maintains information on registered electrical contractors and electricians in good standing.
Warning signs of poor cable practice
Customers are not expected to perform engineering calculations. However, they can recognise warning signs.
Be cautious when an installer:
- Refuses to discuss cable specifications
- Uses unmarked or difficult-to-identify cable
- Changes cable size on site without explanation
- Uses visibly small battery cables on a high-power inverter
- Makes several improvised joints
- Mixes connector brands or types carelessly
- Leaves cables unsupported or exposed to damage
- Places protective devices far from the equipment they are meant to protect without a design reason
- Produces no labels or documentation
- Says “this cable works for every system”
One sign does not automatically prove the installation is unsafe. It does justify further questions.
What to ask your solar installer about cable size
Before installation begins, ask:
- What are the proposed DC, battery and AC cable sizes?
- What current is expected in each major circuit?
- What cable lengths were used in the calculation?
- What voltage-drop limit was applied?
- Are the conductors and insulation suitable for the operating environment?
- What fuses, breakers and isolators protect the circuits?
- What cable lugs and connectors will be used?
- How will terminals be crimped and torqued?
- How will the cables be routed and protected mechanically?
- Will the completed system be tested under load?
A credible installer should be able to answer in plain language.
The customer does not need to become an electrical engineer. The installer needs to demonstrate that an engineer or competent professional has thought about the details.
Do not compare cable price without comparing cable value
Copper and quality electrical materials are expensive. That does not make them optional.
A larger conductor can increase initial project cost, but it may reduce energy loss, improve voltage stability and avoid future replacement work.
The correct objective is not to install the largest cable possible. Oversizing without reason wastes money and can create practical termination problems.
The objective is to install the correct cable for the system.
That requires calculation, professional judgement and compliance with equipment and electrical requirements.
Frequently asked questions
What cable size should I use for a solar installation in Ghana?
There is no universal answer. Cable size depends on current, voltage, route length, allowable voltage drop, installation method, temperature, protection and manufacturer requirements. A competent designer must calculate it for the specific circuit.
Can an undersized solar cable damage an inverter or battery?
Excessive voltage drop and heating can lead to poor performance, alarms, shutdowns and stress on equipment or connections. The exact consequences depend on the circuit and operating conditions.
Is a thicker cable always better?
Not automatically. The cable should be correctly sized. Unnecessary oversizing increases cost and may complicate termination, while undersizing creates performance and safety risks.
Why do battery cables look much larger than ordinary house wiring?
Battery systems often operate at relatively low DC voltage while supplying high power. That can produce very high current, requiring larger conductors and robust connections.
Final advice
A customer may never see most of the cables again after installation.
That is exactly why the installer must be worthy of trust.
Do not allow an expensive inverter and battery system to depend on questionable conductors, connectors or workmanship.
If a quotation is unusually cheap, ask whether the cable sizes, cable quality and protective equipment have been reduced.
The money saved on cable can be insignificant compared with the cost of energy loss, system failure, rewiring or damaged equipment.
Need a professionally engineered solar system?
Nocheski Solar designs, supplies, installs and supports solar, battery-storage and electrical solutions across Ghana and West Africa.
Read more about why poorly designed solar systems fail in Ghana, explore the Nocheski Solar product catalogue, or contact our technical team for a site and load assessment.
Correct cable sizing is not an optional detail. It is part of professional solar engineering.
