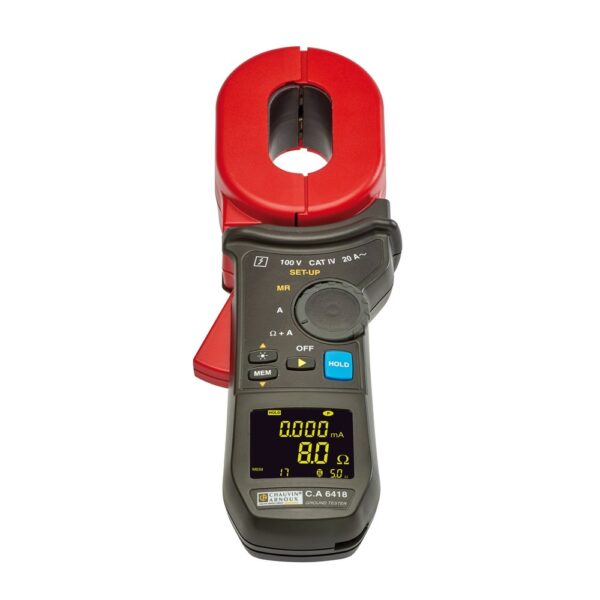

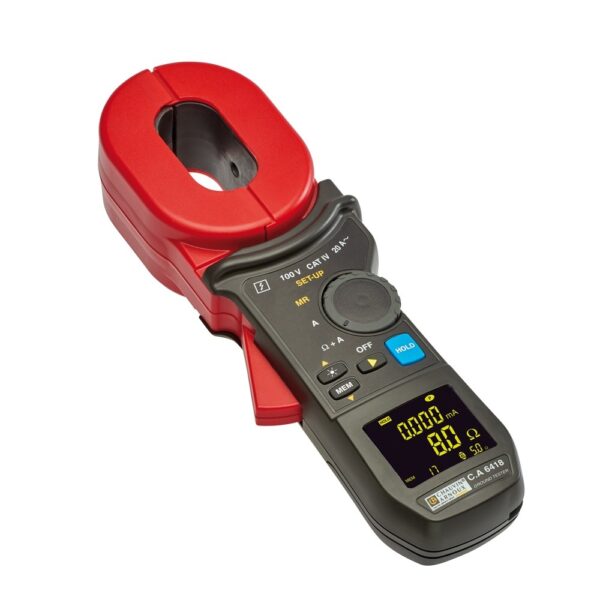

Chauvin Arnoux C.A 6418 earth/ground clamp
Chauvin Arnoux C.A 6418 earth/ground clamp
Chauvin Arnoux C.A 6418 earth/ground clamp
Chauvin Arnoux C.A 6418 earth/ground clamp

Chauvin Arnoux C.A 6418 earth/ground clamp

The C.A 6418 earth/ground clamp, delivered in its carrying case, can be used for quick testing of earth loops, whatever their type. Its clamping capacity allows measurements on 30 x 40mm and 20 x 55mm rectangular bars and cables 32mm in diameter.
The C.A 6418 clamp simultaneously displays the earth-loop resistance and the leakage current.

Download Sales Brochure
Add to Wishlist
Compare
Categories: ,

Description

Due to ergonomic innovations such as the OLED display providing visibility over an angle of 180 degrees, in all lighting conditions, it is particularly easy to use. The automatic “pre-HOLD” function when the clamp is opened and the automatic calibration of the jaw gap at power-up ensure optimized processing of the measurements provided by the C.A 6418 clamp.

Additional specifications:
Wide measurement range from 0.010 Ω to 1200 Ω
Current from 0.5 mA to 20 A
Alarms configurable for Ω and A
Automatic Pre-Hold mode when the clamp is opened
300 time/date-stamped measurements
Automatic calibration of the jaw gap at power-up
Buzzer and automatic power-off
